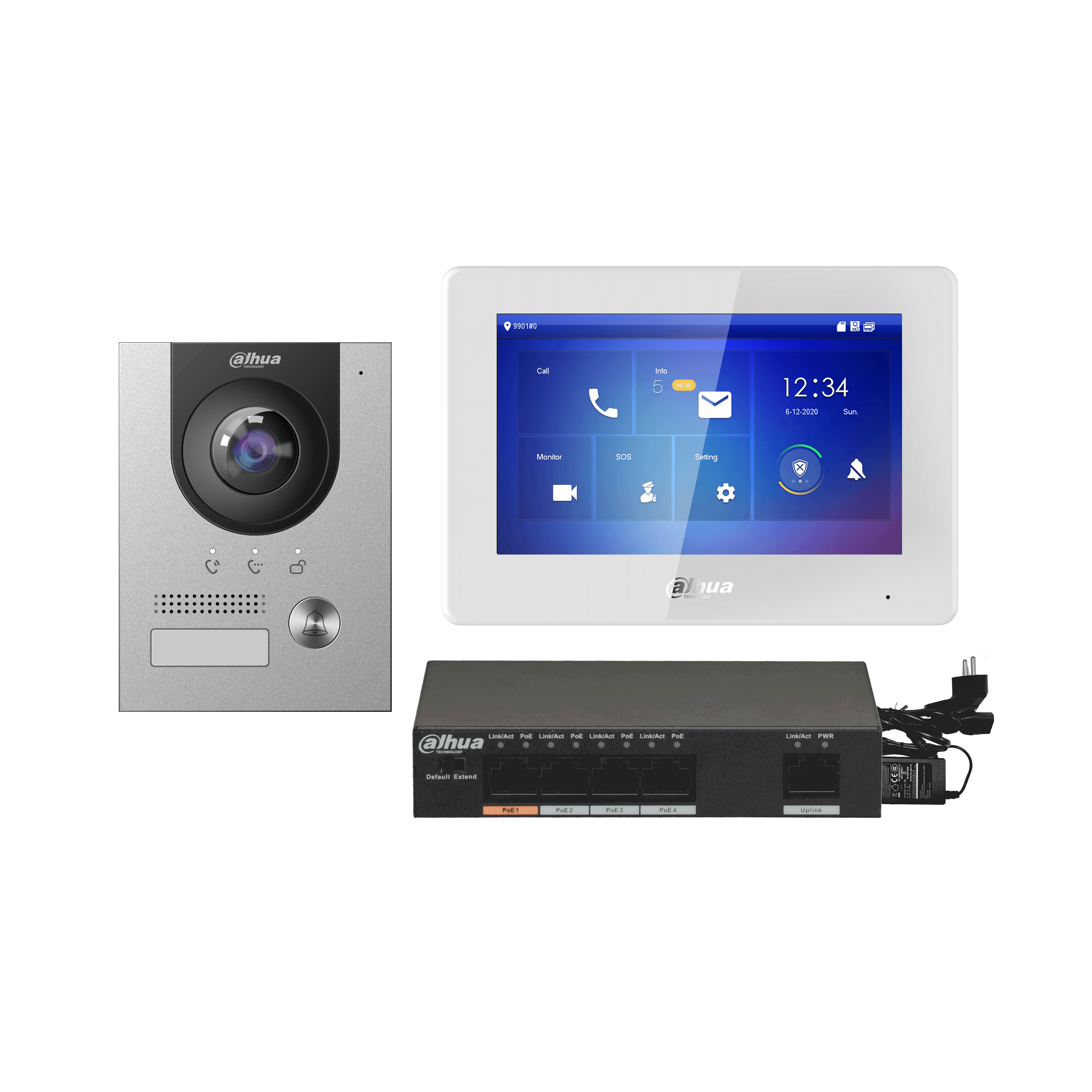

KTP04 (IP Villa Door Station)

Categories: ,

Product Description

KTP04

IP Villa Door Station

IP Villa Door Station

> Anodized alumimum front panel
> CMOS low illumination 2MP HD colorful 140° camera
> Video intercom function
> Access control function that supports two locks
> Mobile phone app, talk to the visitor or unlock the door remotely on
> Support H.265
> Support surface and flush mount
> PoE
> IK07&IP65
> 2.5D screen glass
> 7″ TFT capacitive touch screen
> 6-channel alarm input and 1-channel alarm output
> Supports standard PoE
> H.265 video coding (H.264 by default)
> SOS alarm
> Supports daisy chain topology

System
Main Processor Embedded processor
Operating System Embedded Linux Operation System
Button Type Mechanical
Interoperability ONVIF; CGI
Network Protocol SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP
Basic
Camera 1/2.9″ 2MP CMOS Low Illumination HD Colorful Camera
Field of View Horizontal: 138.6°; vertical: 79.6; diagonal:159°
Focal Length 2.0 mm
WDR 120 dB
Noise Reduction 3D NR
Video Compression H.265
Video Resolution 50Hz:
Main Stream (720P@25 fps), sub stream (1080P@25 fps)
60Hz:
Main Stream (720P@30 fps), sub stream (1080P@30 fps)
Video Frame Rate 25 fps
Video Bit Rate 256 Kbps to 8 Mbps
Light Compensation Auto IR
Day/Night Auto (ICR)
Audio Compression G.711a; G.711u; PCM
Audio Input 1 channel
Audio Output Built-in speaker
Audio Mode 2-way voice communication
Audio Enhancement Echo suppression/digital noise reduction
Audio Bit Rate 16 KHz, 16 Bit
Status Indicator Light 3
Port
Electric Lock 1
Alarm Output 1
Power Output 1-ch 12 VDC 100mA
Exit Button 1
Door Status Detection 1
Lock Control 1
Network Port One RJ45 10M/100M network port
General
Appearance color Silver
Power Supply DC 24V 1A Standard PoE
Power Adapter Optional
Installation Flush mount
Certifications CE; FCC; UL
Product Dimensions 130 mm × 96 mm × 28.5 mm (5.12″ × 3.78″ × 1.12″)
Protection IK07; IP65
Operating Temperature –30°C to +60°C (–22°F to 140°F)
Operating Humidity 10%–90% (RH, non-condensing)
Operating Altitude 0 m–3000 m
Power Consumption ≤ 8W
Net Weight 0.35 kg (0.77 lb)
Gross Weight 0.4 kg (0.88 lb)
System
Main Processor Embedded processor
Operating System Embedded Linux Operation System
Button Type Touch keypad
Interoperability ONVIF
Network Protocol SIP; IPv4; RTSP; RTP; TCP; UDP
ROM 128 MB
RAM 128 MB
CPU Dual-core 1.2 GHz
Basic
Screen Type Capacitive
Display Screen 7-inch TFT
Resolution 1024 × 600
Audio Compression G.711a; G.711u; PCM
Audio Input 1
Audio Output Built-in speaker
Audio Mode 2-way voice communication
Audio Enhancement Echo suppression
Audio Bit Rate 16 KHz, 16 Bit
Communication Mode Full digital
Information Release Supports viewing text announcement from the center ( insert an SD card to receive
and view pictures)
Leave Videos Yes (SD card inserted in VTH is needed)
Storage Extensible 64 GB Micro SD card
Port
RS-485 1
Alarm Input 6
Alarm Output 1
Power Output 1, 12V/100mA
Door Bell Yes, reusing any alarm input port
Network Port One 10 Mbps/100 Mbps Ethernet port
General
Casing PC + ABS
Appearance color White
Power Supply DC 12V 1A Standard Poe
Power Adapter Optional
Installation Surface mount
Certifications CE; FCC; UL
Accessory Bracket (standard) Alarm ribbon cable (standard)
Product Dimensions 189.0 mm × 130.0 mm × 26.9 mm (7.44″ × 5.12″ × 1.06″)
Operating Temperature –10°C to +55°C (14°F to 131°F)
Operating Humidity 10%–95% (RH, non-condensing)
Operating Altitude 0 m–3000 m
Power Consumption Standby ≤ 2W, working ≤ 6W
Net Weight 0.388 kg (0.86 lb)
Gross Weight 0.74 kg (1.63 lb)
General
Network Port Port 1-4: RJ45 10/100 M (PoE)
Port 5: RJ45 10/100 M (uplink)
Appearance color black
Power Supply External power adpater: DC 48V–57V
Power Adapter Standard
Certifications CE; FCC; UL
Product Dimensions 130 mm × 85 mm × 26 mm (5.12″ × 3.35″ × 1.02″)
Operating Temperature –10°C to +55°C (14°F to 131°F)
Operating Humidity 5%°–95% (RH, non-condensing)
Operating Altitude 0 m–3000 m
Net Weight 0.29 kg (0.64 lb)
